Product Details
  • Place of Origin:  guangdong
  • Brand Name:  ASK
  • Model Number:  SDISP0102

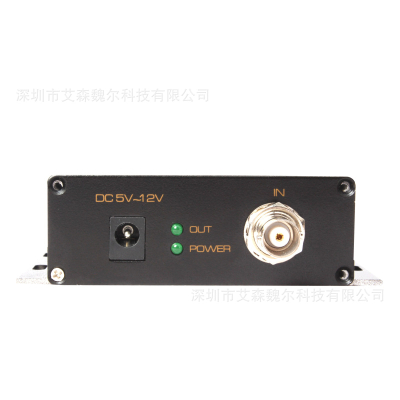

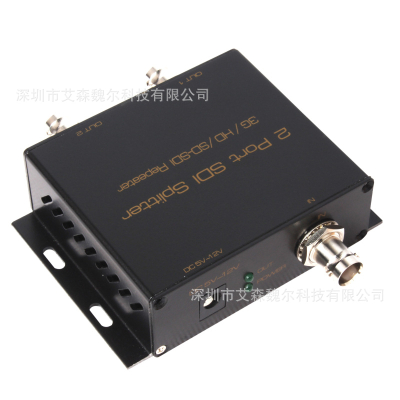

The SDISP0102 two port SDI distributor can easily will be assigned a SDI serial digital video signal is lossless, no distortion, no delay to two SDI display device, support SD-SDI, HD-SDI and 3G-SDI signal format, and SDI signal amplification.

Product features:

1. All the way SDI signal input into two SDI signal output

2. Support SD SD-SDI, HD HD-SDI and full HD 3G-SDI video format

3. SDI supports 1080P/1080I/720P/576I/ 480I and other video formats

4. Support SDI transmission rate SD-SDI:270Mbps, HD-SDI:1.485Gbps and 3G-SDI:2.97Gbps.

5. Maximum cable length (SYV-75-5): SD support 400m, HD support 200m, 3G support 80 ~ 100m (Note: transmission distance for different specifications of the cable, the test results will be different)

6. Support 8bit, 10bit, 12bit dark

7. Maximum support up to 3G-SDI

8. Audio and image synchronous output

9. Support clock recovery

10. Built in ESD protection circuit, can effectively prevent static damage

11. No software settings, support hot plug, plug and play function

12. Wide voltage input, can support DC5V~12V input

  • Place of Origin:  guangdong
  • Brand Name:  ASK
  • Model Number:  SDISP0102
